Also available in 24" & 14"


  • Safety Guard: The saw features complete safety for fast cutting operations. The sawblade is totally enclsed in teh cabinet, and covered by the clamp while it raises to perform cutting. The see-through side guard prevents the operator's hands from approaching the cutting area. This assures the safest cutting operations.
  • Safety Switch: When the operator's hands approach the cutting area, the safety switch will automatically be actuated to stop the machine as a safety guard.
  • Optional Infeed & Outfeed are equipped with a graduated gauge bar, with a swing stop for identical length of cut.
  • Extension stop is provided on teh outfeed roller conveyor, providing convenient length stops. It is ideal for repetitive cuts in a mass production line.
  • Stripped table surface is precision ground, assuring cutting accuracy.

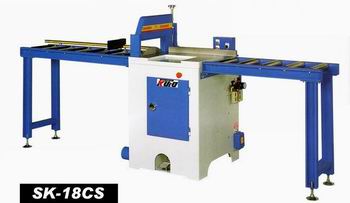

  • Picture shown left-hand model is standard (Optional Right hand model)
  • Fast cutting rate up to 81 strokes per minute. Cycle speeds are adjustable.
  • Motion cycles are peneumatically operated, and conveniently controlled by a foot switch.
  • Powerful, high torque 10HP motor drive.
  • Clap is easily adjusted for workpiece thickness variation
  • Easy belt tension adjustment or replacement.
  • High stability at fast cutting rates.
  • Convenient cycle speed adjustment from outside the machine
Cutting capacity (thickness width)
50mm x 305mm , 75mm x 280mm, 100mm x 255mm
Cycle speed
45 strokes / min.
Cycle operation
Saw blade size
Saw arbor diameter
30mm ( 1" )
Saw blade speed
3600 RPM
Dust exhaust diameter
100mm diameter
10 hp, 3 phase, 230 V (optional 460V)
Table size
660mm x 710mm (26" x 28")
Net weight
365kgs ( 800 lbs )
Gross weight
415kgs ( 910 lbs )
Infeed & Outfeed table

2.4m( 8 ft )infeed & 2.4m ( 8 ft ) outfeed with fence, legs (3)

3.6m infeed & 3.6m outfeed with fence, legs (4) sets, (3) gravity flip stop
4.8m infeed & 4.8m outfeed with fence, legs (4) sets, (3) gravity flip stop
Packing dimensions ( L x W x H )
940mm x 915mm x 1448mm
