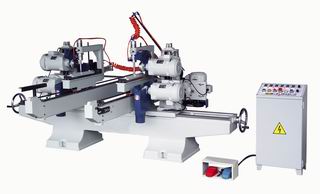

SK-626AST   Double ended upper & lower circular sawing with vertical shaft machine



  1. Upper and lower sawblades and molder cutter are equipped at both ends. Especially ideal for parquet cutting off, cutting to size and molding operations.
  2. Automatic operation provides maximum operational convenience and high productivity.
  3. Two rails configuration. Slideways are equipped with precision linear motion guides. Synchronized feed motion for both ends assures high cutting accuracy.
  4. Sawblades and cutting tools are optional equipment.
  5. Separately mounted control box allow for moving into any position as desired.


MODEL SK-426AST SK-626AST SK-826AST
Processing Length 280~1200mm 280~1850mm 280~2440mm
Processing Width  580mm
Sawblade diameter (optional) 10”~14”(φ25.4mm)
Tilting degree of sawblade and moulding spindle 360°
Turning speed of circular sawing blade 3000~3300R.P.M, 50~60Hz
No. of rails 2set
Motor of circular sawing blande 2HPx4
Vertical shaft motor 3HPx2
Outfeed motor 1/4HP
Diameter of vertical shaft φ30mm(Standard specification)
Turning speed vertical shaft 6600~7200R.P.M. 50~60Hz
N.W./G.W. 1000/1170kg 1120/1300kg 1070/1270kg
Machine size 2230x2200x1200mm 2950x2200x1200mm 2950x2200x1200mm
Shipping size 2150x2275x1550mm 2820x2275x1550mm 2820x1120x1400mm
