SK-15301 ( 5 X 10 ft. )

SK-12241 ( 4 X 8 ft. )

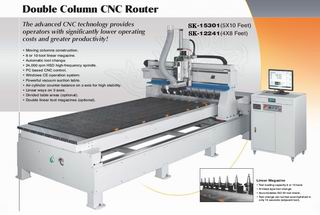

Double Column CNC Router

  • Moving columns construction.
  • 8 or 10-tools linear magazine.
  • Automatic tool change.
  • 24,000 rpm HSD high-frequency spindle.
  • Windows CE operation system.
  • Powerful vacuum suction table.
  • Air-cylinder counter balance on z-azis for high stability.
  • Linear ways on 3 axes.
  • Divided table areas (optional).
  • Double linear tool magazines (optional).

For more information !!!

Please call (888)558-4628 or (562)802-3819

MODEL
SK-12241
SK-15301
Capacity Max. workpiece size
4 X 8 feet
5 X 10 feet
Travel X-axis
1250 mm
1550 mm
Y-axis
2440 mm
3050 mm
Z-axis
230 mm
230 mm
Spindle nose to table
255 mm
255 mm
Distance between columns
1330 mm
1630 mm
Table Table area
1250 X 2440 mm
1550 X 3050 mm
Feed Rate Cutting feed rate
8 M/min
X-axis rapid traverse
16 M/min
Y-axis rapid traverse
36 M/min
Z-axis rapid traverse
8 M/min
Spindle Spindle speed (Variable)
500 ~ 24,000 rpm
Spindle taper
ER 32
ATC Magazine type
Lineat type
Tool numbers
8 pcs
Tool shank
ISO 30
Cutter Router bit sizes
3 ~ 60 mm
Collet sizes
3 ~ 20 mm
Motor Spindle motor
8 kw
X-axis motor
1 kw
Y-axis motor
1.5 kw
Z-axis motor
0.75 kw
Vacuum pump motor
10 hp
Others Air pressure required
6 kgf/cm^2
Machine dims. ( L x W x H ) mm
2000 X 4000 X 2100 mm
2240 X 4750 X 2100 mm
Packing dims. ( L x W x H ) mm
2100 X 4100 X 2200 mm
2300 X 4850 X 2200 mm
N.W. / G.W.
2500 / 2800 kgs
3000 / 3300 kgs


Vacuum Pressure Meter

  • A vacuum pressure meter is provided at the front of the table for checking vacuum pressure.
  • The machine does not operate until the vacuum pressure reaches the setting value.

Moving Columns

  • The moving-columns structure greatly saves occupied area of the machine.
  • The double columns move on heavy-duty linear guide ways, featuring great rigidity and stability.opp

Powerful Vacuum Suction Table

  • The table is fitted with a compact board drilled with holes for vacuum suction of workpiece.
  • The positions of vacuum suction holes can be drilled according to customers workpiece types.




Liner Magazine

  • Tool loading capacity 8 or 10 tools
  • Armless type tool change.
  • Accommodates ISO 30 tool shank.
  • Tool change can be fast accomplished in only 10 seconds ( adjacent tool).

Automatic Lubricator

  • The automatic lubricator delivers lubrication oil to all slideways, resulting in extremely smooth movements on 3 axes.
  • Lubrication frequency and oil flow may be adjusted as desired.
