| MODEL |
|

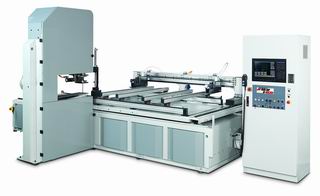

SK-020CNC
|
| Cutting Capacity |
Max. workpiece size ( L X W X H ) |
2000 X 1200 X 150 mm |
| |
Cutting angle |
+90 / -90 degree |
| Cutting depth |
650 mm |
| Band sawblade sizes |
5900 X 12.7 mm |
| Saw wheel diameter |
890 mm |
| Saw wheel speed |
750 rpm |
| Sawblade speed |
2000 MT/min |
| Saw wheel adjustment |
0 / 80 min |
| Spindle |
X-axis feed speed |
0 / 70 MT/min |
| Y-axis feed speed |
0 / 20 MT/min |
| Others |
Working air pressure |
6 Bar |
| Motor |
X-axis |
3.5 kw |
| Y-axis |
1.6 kw |
| C-axis |
0.7 kw |
| Band sawblade motor |
15HP |
| Dust hood outlet diameter |
100 mm X 2 |
| Machine |
Machine dims. ( L
x W x H ) mm |
5200 X 3300 X 2600 mm |
| N.W. / G.W. |
4300
kgs
|
| |
